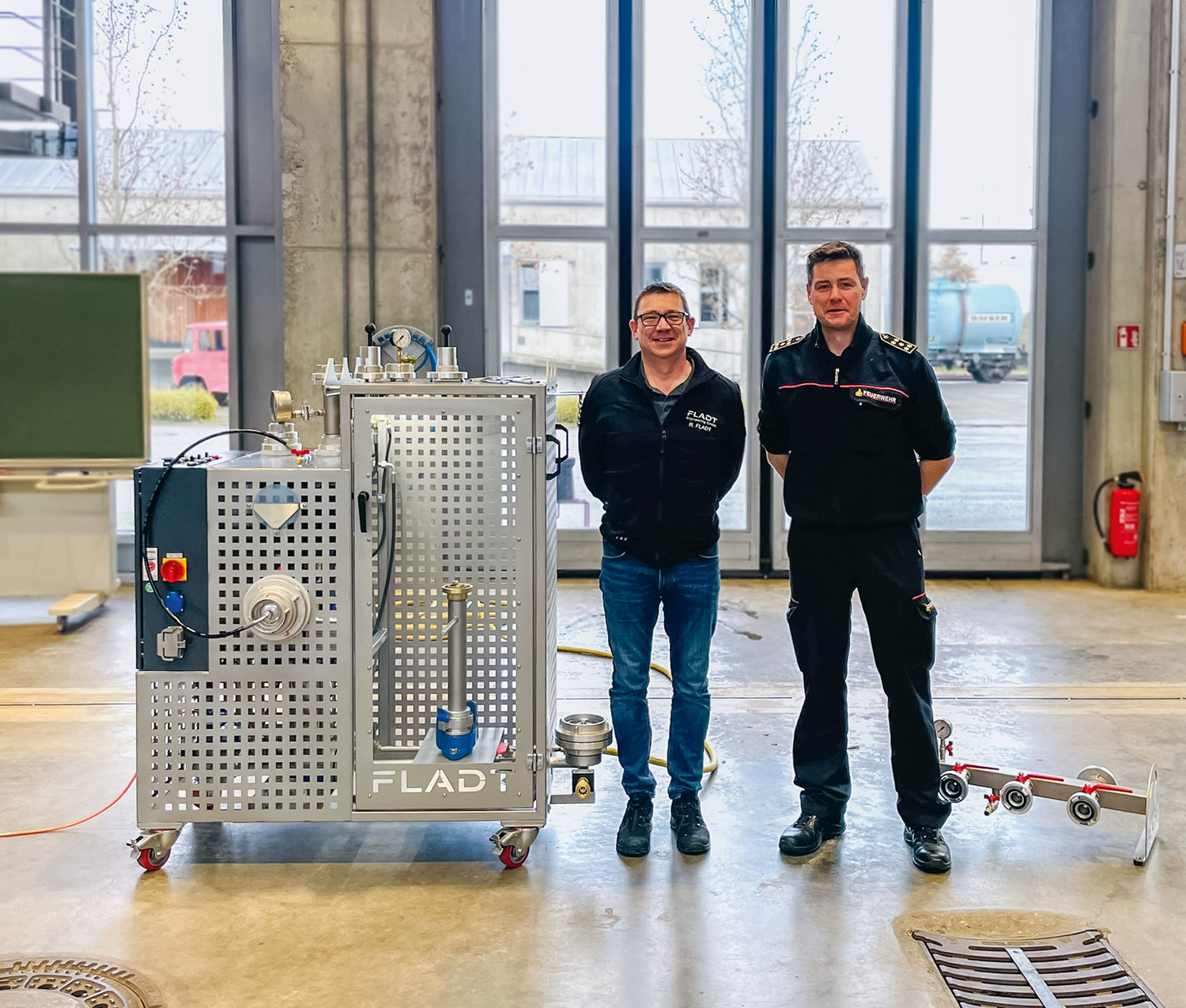

Our valve test trolley is used to test DIN fire service valves with nominal pressures of up to 25 bar. This includes, for example, standpipes and pressure-side fittings such as nozzles, distributors, pressure relief valves and hose shut-offs.

For use as a stand-alone system or in conjunction with our static/dynamic pressure test on pump test benches. Optional: Pressure test for suction and pressure hoses.

Connections:
¾" drinking water supply and 230 V power socket

Connection options:
Standpipe 80mm
Storz A
Storz B
Storz C

Information on valve testing:

 Vorschrift Armaturen prüfen nach DGUV 305-002
Test principles for fire service equipment, devices and vehicles
